Products

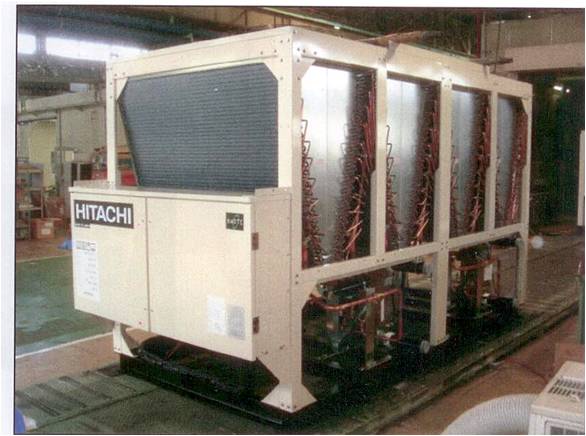

- Air Cooled Screw Compressor Chillers under HITACHI License from
191KW to 1146 KW(Tropical conditions)
- Air Cooled (Scroll/Screw Compressor )Chillers from 25KW to 150 KW(Tropical conditions)
- DX system Fresh Air AHU’s with Heat Recovery(optional) .
- Fan Coil Units
a)Low static (nominal 25 pa,max 40 pa) ).Blow through type.
a.1) Air flow from 300 cfm up to 1400 cfm
a.2) Standard water flow ΔΤ (7 C IN -12 C OUT)
a.3)High water flow ΔΤ (5.5 C IN-14.5 C OUT)
a.4)Aluminium 1 in thick inlet filter.

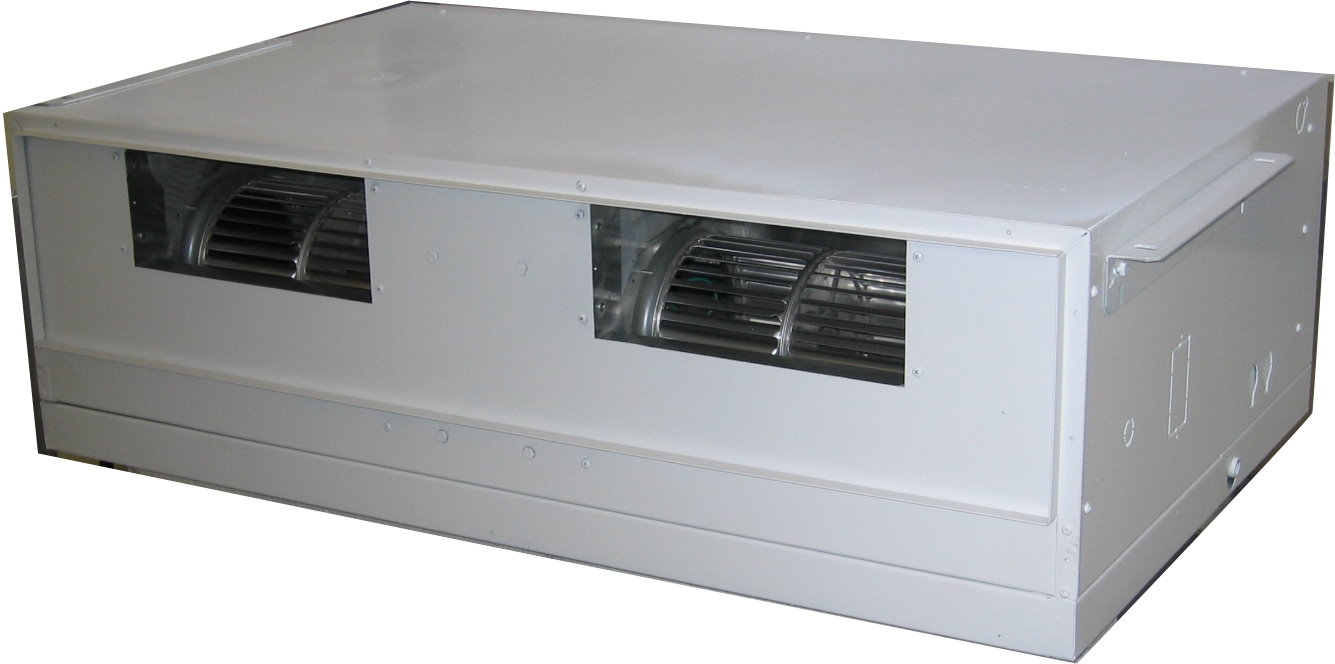

b)High static (nominal 50 pa ,max 75 pa)). Draw through type.
b.1)Air flow from 300 cfm up to 2000 cfm)
b.2) Standard water flow ΔΤ (7 C IN -12 C OUT)
b.3)High water flow ΔΤ (5.5 C IN-14.5 C OUT)(district cooling)
b.4)Aluminium 1 in thick inlet filter.
The fan coils will be certified with the EUROVENT certification programs for ductable fan coil units

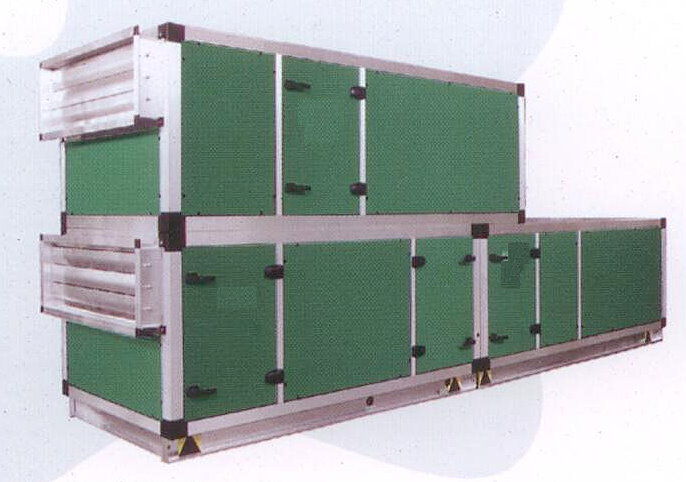

- Air Handling Units for Standard water flow ΔΤ (7 C IN -12 C OUT) and High water flow ΔΤ (5.5 C IN-14.5 C OUT)(District cooling applications)
1) From 2700 m³/hr up to 8100 m³/hr (1600 cfm up to 4800 cfm)in Mono block version with options for direct driven fan or belt driven fan and with or without bag filters(5 models)
2) From 2250 m³/hr up to 77800 m³/hr in 15 models with modular design
2.1) The modules will be
• SUPPLY FAN SECTION with centrifugal double inlet or plug fans
• COIL SECTION with 3/8 copper pipe and aluminium fins.
• BAG FILTER SECTION with EU4 prefiler and EU7 or EU9(optional) bag fileters
• MIXING BOX with dampers made from aluminium profiles
• HEAT RECOVERY SECTION with plate or rotary heat exchangers
• RETURN FAN SECTION with centrifugal double inlet or plug fans
2.1)The panels will be with polyurethane foam 50 mm thick,with the outer skin powder coated.
2.2) Coil drain pan stainless steel
2.3)Each module with base 150 mm height as standard
The Air Handling Units will be EUROVENT certified
|
